Anbe SMT Thermocouples

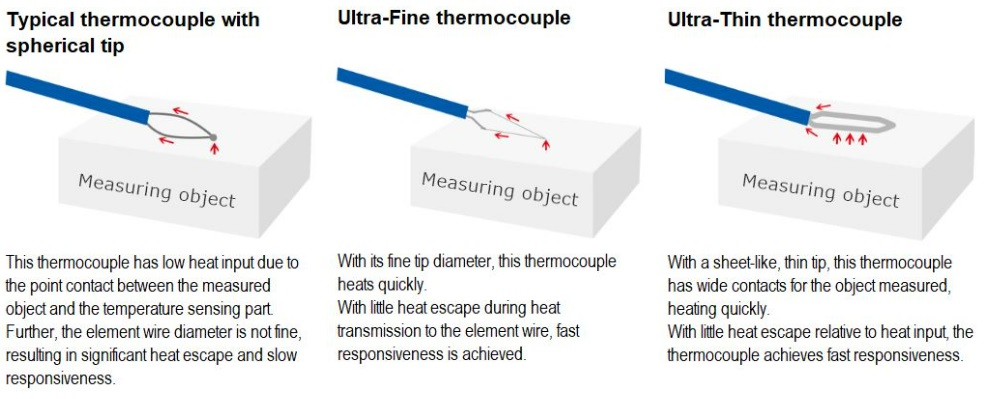

For Amazing Fast Response, Ultra-Fine and Ultra-Thin Thermocouples are Superior compared with Spherical-Tip Thermocouples

Product Lineup
We have a wide range of fast response thermocouples. We also provide customized thermocouples which meet your needs.

Ultra-fine Thermocouples

Extremely fine and highly sensitive thermocouples with a tip diameter of 1.3μm, 25μm, or 50μm.
Suitable for temperature measurement of minute areas or gases, and for applications requiring precise temperature measurement. precise temperature measurement.

Ultra-fine Thin Thermocouples

Extremely thin and highly sensitive thermocouples with a tip thickness of approx. 10μm, or 20μm.
Suitable for temperature measurement of fine flat surfaces or gases and for applications requiring precise temperature measurement.

Ultra-thin Thermocouples

Thin thermocouples with a tip thickness of about 20μm, 40μm, or 60μm have excellent strength and sensitivity.
Suitable for flat surface temperature measurement and temperature measurements requiring some strength.

Multi-purpose Thermocouples

With a tip diameter of 100μm, 127μm, 150μm, 200μm, or 320μm, the thermocouples have excellent strength.
Suitable for bottomhole temperature measurement and temperature measurements requiring strength.

Custom-made

First, make inquiries to us.
The left photo shows a thermocouple made for measuring internal temperatures of engine. We would appreciate hearing more about your needs. We provide you the thermocouples which meet your needs.

Thermocouple Wire Sheath and Option
Type and Feature of Thermocouple Sheath

Various kinds of sheaths and shields are available; glass, Teflon, ceramic

Option

Various options are available depending on the usage status of thermocouple;
Tip options: reinforcement with kapton tape / insulation coating / tip soldering / kapton tape cover
Terminal options: Omega’s miniature connects, SMPW, HMPW, SHX / simple copper Y terminals / multi-pins connectors
Others: insulation / calcination treatment / compensation lead wire / plastic plate packaging
